3M™ Scotchlite™  |  SKU: REF-2008

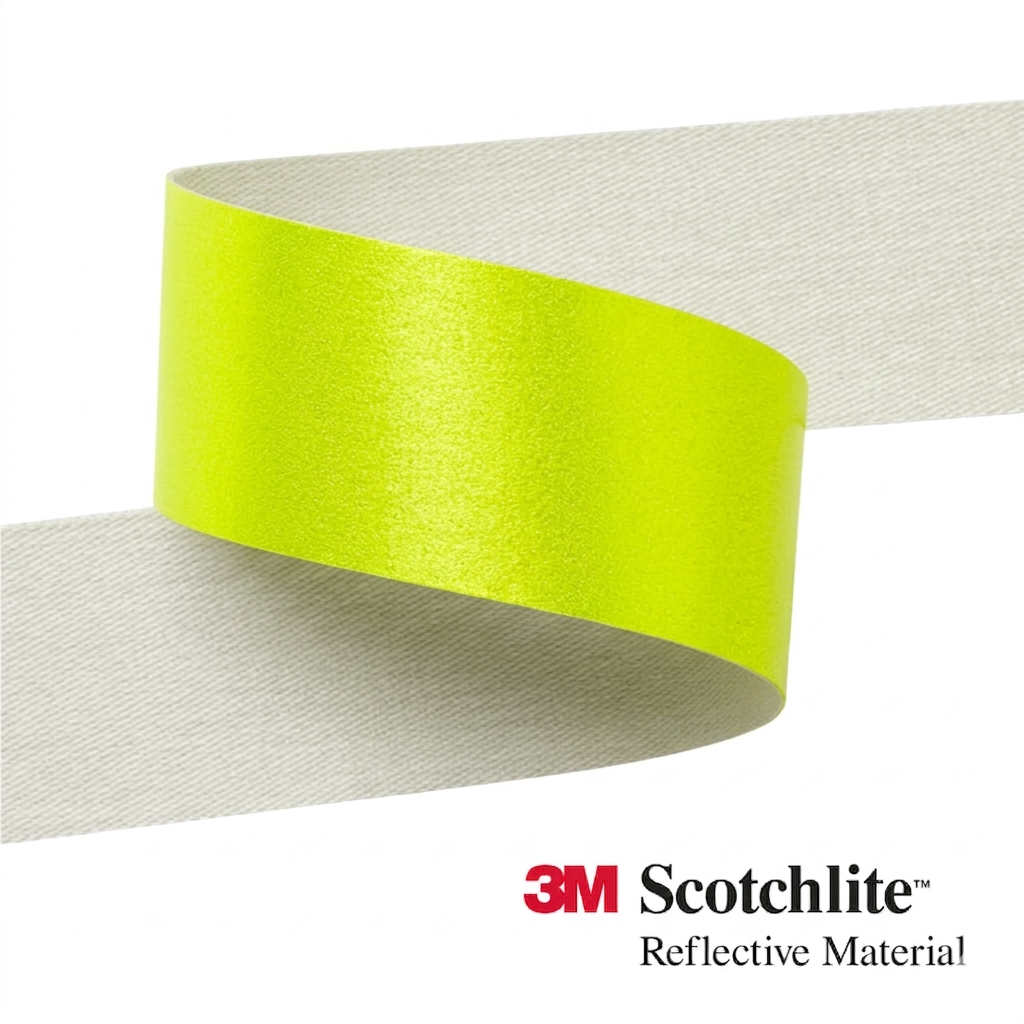

3M™ Scotchlite™ 8787 Lime/Yellow Iron-On Reflective Transfer Film

Regular price $0.60 CAD

Width

Specifications

  • Initial Average Brightness: 175 candelas/lux/sq meter
  • Minimum Initial Brightness: 65 candelas/lux/sq meter
  • Abrasion Resistance: 5,000 cycles (EN 530 Method 2)
  • Flexing: 7,500 cycles (ISO 7854 Method A)
  • Cold Fold: -20 °C (-4 °F) [ISO 4675]
  • Flame Resistance: ASTM D6413-15, CAN/CGSB-4.2 No. 27-10
  • Heat Resistance: ISO 17493, 5 minutes @ 260°C (500 °F)
  • Width: 2" wide
  • Roll Size: 327 feet

Care Instructions

Washing & Drying:

  • Wash: Machine wash warm, 40 °C (105 °F)
  • Drying: Tumble drying low
  • Ironing: Cool iron, 110 °C (230 °F)
  • Dry-Cleaning: Dry-clean, normal cycle

Cleaning & Bleaching:

  • Prompt Cleaning: Maintain peak retro-reflective performance by laundering contaminated apparel promptly; delayed cleaning may result in permanent staining and reduced visibility
  • Stain Removal: Avoid using high-alkaline cleaning agents, such as heavy-duty stain removers, as these can damage the material
  • Bleaching: If bleaching is required, only non-chlorine bleach should be used

Storage and Maintenance:

  • Environmental Conditions: Product should be stored in a cool, dry area at temperatures between 4 °C and 27 °C (40 °F to 80 °F) with less than 70% relative humidity
  • Shelf Life: Product should be used within two years from the date of purchase

Disclaimer

While use of 3M Scotchlite reflective material does greatly enhance visibility, no reflective material can guarantee absolute visibility, particularly in adverse weather conditions.

Cutting: Die-cutting is recommended, although the film can also be hand-cut, guillotined, kiss-cut, or plotter cut.

Cautions:

  • Nylon and fabrics with a durable water repellent (DWR) finish are difficult to adhere to and are not recommended
  • This film contains an aluminum layer. Blemishing of this layer can occur if the film's paper carrier is removed and the product is exposed to hot/humid conditions (>80 °F and >70% relative humidity) for weeks. These blemishes do not affect performance.

Description

The 3M™ Scotchlite™ 8787 Lime/Yellow Iron-On Reflective Transfer Film is composed of wide-angle, exposed retro-reflective lenses bonded to a heat-activated polyester adhesive. Suitable for safety vests, harnesses, uniforms, jackets, outerwear, armbands, headwear, cut-out letters and numbers, and more.

Application to Fabrics:

  1. Remove the plastic liner, exposing the adhesive (do not remove the paper carrier)
  2. Place on the substrate with the adhesive side down, apply heat (163 °C - 190 °C; 325 °F - 375 °F)
  3. Allow cooling before removing the paper carrier. For best results, apply to light and medium-weight fabrics on a flat surface with uniform heat and pressure. Avoid seams

Available only in the 2" width.

Sold per foot.
