3M™ Scotchlite™

3M™ Scotchlite™ 8940 F.R. Silver Sew-On Industrial Reflective Tape

$4.31 CAD
Width

Specifications
  • Certifications: ANSI/ISEA 107-2020, CSA Z96-2020, NFPA 1951-2020, NFPA 1971-2018, NFPA 1977-2016, NFPA 1977-2022, NFPA 2112-2018
  • Initial Average Brightness: 500 candelas/lux/sq meter
  • Minimum Initial Brightness: 330 candelas/lux/sq meter
  • Fabric Backing: 100% Aramid printed with 3M trademarks
  • Abrasion Resistance: 5,000 cycles (EN 530 Method 2)
  • Flexing: 7,500 cycles (ISO 7854 Method A)
  • Cold Fold: -20 °C (-4 °F) [ISO 4675]
  • Width(s): 1/2", 1", 2"
  • Roll Size: 327 feet

Care Instructions

Washing & Drying:

  • Wash: Machine wash hot, 60 °C (140 °F)
  • Drying: Tumble drying low
  • Ironing: Medium iron, 150 °C (300 °F)
  • Dry-Cleaning: Dry-clean, normal cycle

Cleaning & Bleaching:

  • Prompt Cleaning: Maintain peak retro-reflective performance by laundering contaminated apparel promptly; delayed cleaning may result in permanent staining and reduced visibility
  • Stain Removal: Avoid using high-alkaline cleaning agents, such as heavy-duty stain removers, as these can damage the material
  • Bleaching: If bleaching is required, only non-chlorine bleach should be used

Storage and Maintenance:

  • Environmental Conditions: Product should be stored in a cool, dry area at temperatures between 4 °C and 27 °C (40 °F to 80 °F) with less than 70% relative humidity
  • Shelf Life: Product should be used within two years from the date of purchase

Disclaimer

While use of 3M Scotchlite reflective material does greatly enhance visibility, no reflective material can guarantee absolute visibility, particularly in adverse weather conditions.

Description

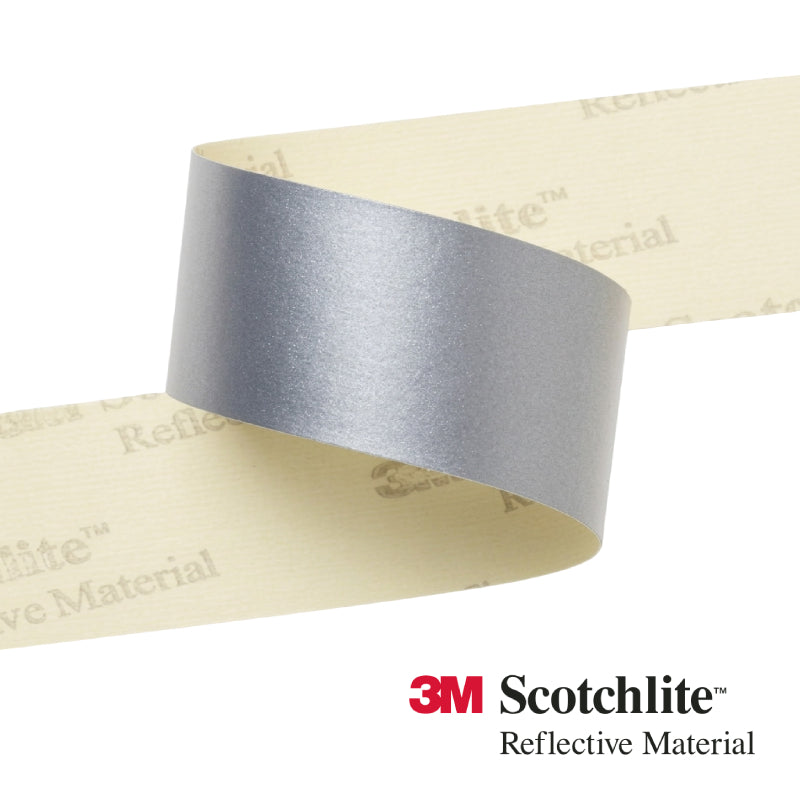

The 3M™ Scotchlite™ 8940 F.R. Silver Sew-On Industrial Reflective Tape is made of a wide-angle, exposed retro-reflective lenses bonded with a special polymer layer to an aramid backing. This tape is ideal for applications that undergo industrial laundering and is recommended for use on medium and heavyweight fabrics.

Application Instructions:

  • Sew in place using a lockstitch, with no more than 12 stitches per inch (2.54 cm)
  • Position stitching at least 5/64" (2 mm) from the edge of the reflective fabric
  • Material can be cut by hand, die-cut, or guillotined
  • When applying multiple pieces to a single surface or as part of a set, ensure they are matched to maintain consistent daytime color and nighttime reflectivity

Available in 1" and 2" widths.

Sold per foot.
